QSFP-40G-LR4-FL Cisco QSFP-40G-LR4 Compatible 40GBase-LR4 QSFP+ 1310nm 10km DOM Duplex LC SMF Optical Transceiver Module

$249.99

Free continental US shipping on orders over $99 Details

Loading...

Need a larger quantity? Request a quote

Questions? Call (888) 874-7574

Quick Specs

Rate Category
40G
Form Factor
QSFP+
Interface Type
40GBASE-LR4
Standard/Protocol
IEEE 802.3ba 40GBASE-LR4
TX Wavelength
1271/1291/1311/1331nm (CWDM)
RX Wavelength
1271/1291/1311/1331nm (CWDM)
Cable Type
SMF
Reach
10km (SMF)
DDM
Supported
Connector Type
Duplex LC (UPC)
Power Consumption
3.5W max
Operating Temperature
0°C to +70°C (COM)

Overview

FluxLight's QSFP-40G-LR4-FL is a Cisco® compatible 40GBase QSFP+ transceiver and is factory pre-programmed with all the necessary configuration data for seamless network integration. Our transceivers perform identically to Cisco® original transceivers and are 100% compatible with other OEM and third party transceivers. The Cisco QSFP-40G-LR4-FL is 100% MSA (Multi-Source Agreement) compliant. All FluxLight's transceivers are tested for 100% functionality and guaranteed compatible for outstanding network performance.

FluxLight offers all brands and form factors of Optical Transceivers for all your networking needs. Now you have a reliable, compatible and affordable 40-Gigabit QSFP+ transceiver to expand your network while maintaining its integrity.

Applications

  • 40 Gigabit Ethernet over duplex single-mode fiber up to 10 km
  • Switch/router uplinks, campus and inter-building links
  • Data center interconnect

Features

  • Hot-pluggable QSFP+ footprint with duplex LC receptacle
  • Compliant with IEEE 802.3ba 40GBASE-LR4
  • 4 × 10.3125 Gb/s electrical interface; 41.25 Gb/s aggregate
  • Four CWDM lanes at 1271, 1291, 1311 and 1331 nm; 4-lane DFB transmitter and 4-lane PIN receiver
  • Up to 10 km over G.652 single-mode fiber
  • Average launch power −7 to +2.3 dBm per lane; receiver sensitivity −11.5 dBm (OMA) per lane
  • Real-time Digital Diagnostic Monitoring (DDM/DOM) per SFF-8436
  • Single +3.3V power supply, power dissipation ≤ 3.5 W
  • Operating case temperature: 0°C to +70°C (COM)
  • QSFP+ MSA compliant, RoHS-6 compliant, and Class 1 laser eye safety certified (IEC/EN 60825-1)
  • 100% compatible with and programmed for the target OEM platform
  • Backed by a FluxLight lifetime warranty

Absolute Maximum Rating

The operation in excess of any absolute maximum ratings might cause permanent damage to this module.

ParameterSymbolMinMaxUnitNotes
Storage TemperatureTS-4085°C
Operating Case TemperatureTOP070°C
Power Supply VoltageVCC03.6V
Relative HumidityRH585%Non-condensing

Optical Characteristics

ParameterSymbolMinTypicalMaxUnitNotes
Transmitter
Average Output Power, each lanePOUT-72.3dBm
Launch Power in OMA minus TDP, each lane-4.8dBm
Extinction RatioER3.5dB
Total Average Launch PowerPT8.3dBm
Center Wavelength, Lane 0λ01264.512711277.5nm
Center Wavelength, Lane 1λ11284.512911297.5nm
Center Wavelength, Lane 2λ21304.513111317.5nm
Center Wavelength, Lane 3λ31324.513311337.5nm
Side Mode Suppression RatioSMSR30dB
Transmitter and Dispersion Penalty, each laneTDP2.6dB
Difference in Launch Power between any two lanes (OMA)6.5dB
Optical Return Loss ToleranceORLT20dBPer IEEE 802.3ba 40GBASE-LR4
Transmitter Reflectance-12dB
Receiver
Average Receive Power, each lanePin-13.72.3dBm
Receiver Sensitivity (OMA), each laneSen-11.5dBm
Receive Power, each lane (OMA)3.5dBm
Receiver Damage Threshold, per LanePRdmg3.3dBm
Center Wavelength (Lanes 0–3)λ1264.51337.5nm
Receiver ReflectanceRFL-26dB
LOS AssertLOSA-30dBm
LOS De-AssertLOSD-12.5dBm
LOS HysteresisLOSH0.56dB

Digital Diagnostic Functions

The following digital diagnostic characteristics are defined over the normal operating conditions unless otherwise specified.

ParameterSymbolMinMaxUnit
Temperature monitor absolute errorDMI_Temp-33°C
Supply voltage monitor absolute errorDMI_VCC-0.10.1V
Channel RX power monitor absolute errorDMI_RX_Ch-33dB
Channel bias current monitor absolute errorDMI_Ibias_Ch-10%10%mA
Channel TX power monitor absolute errorDMI_TX_Ch-33dB

Mechanical Dimensions

Units: mm

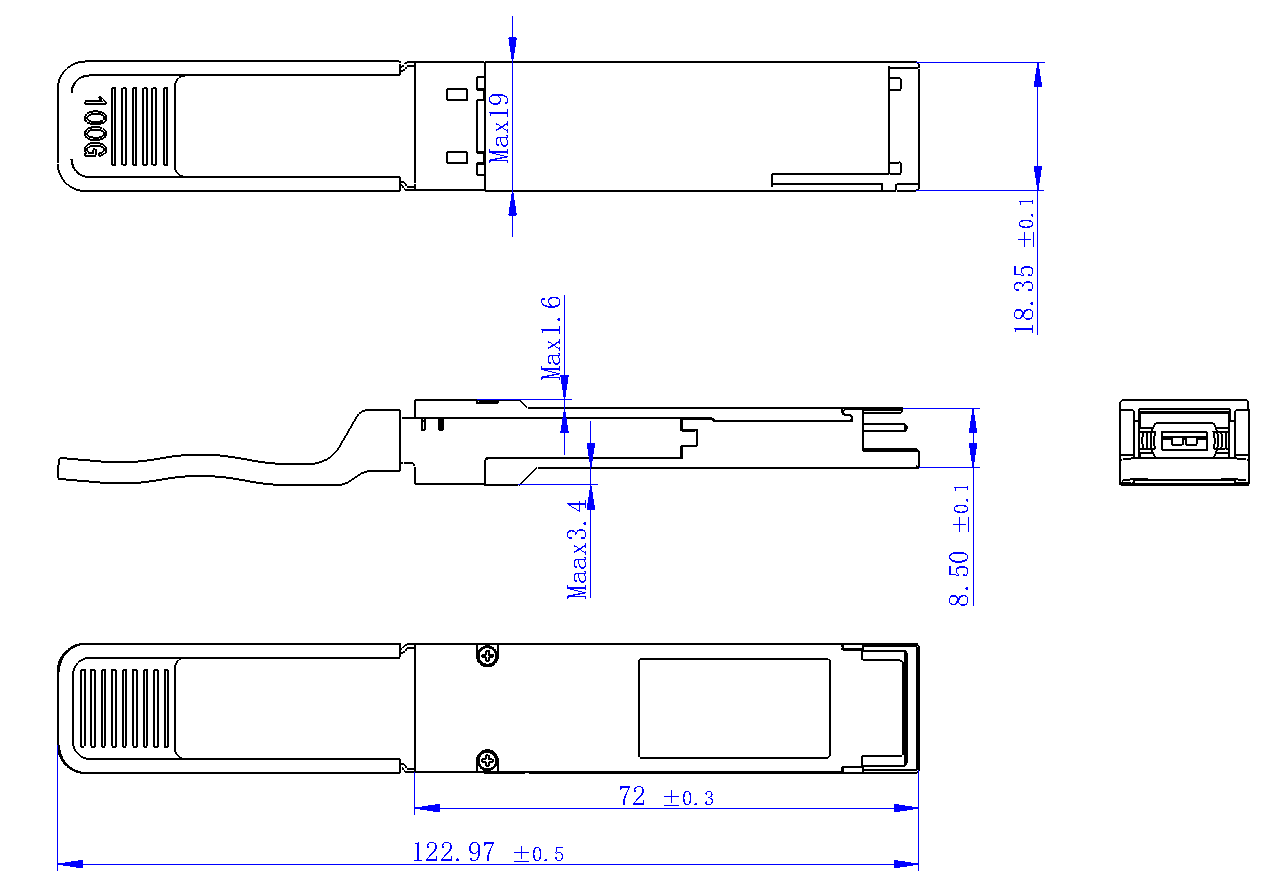

QSFP-40G-LR4-FL Mechanical Dimensions

Pin Assignment and Description

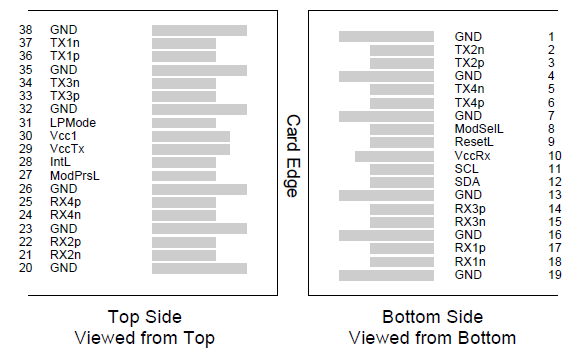

QSFP-40G-LR4-FL Pin Assignment and Description
PinLogicSymbolDescriptionPlug Sequence
1GNDGround1
2CML-ITx2nTransmitter Inverted Data Input3
3CML-ITx2pTransmitter Non-Inverted Data Input3
4GNDGround1
5CML-ITx4nTransmitter Inverted Data Input3
6CML-ITx4pTransmitter Non-Inverted Data Input3
7GNDGround1
8LVTTL-IModSelLModule Select3
9LVTTL-IResetLModule Reset3
10VccRx+3.3V Power Supply Receiver2
11LVCMOS-I/OSCL2-Wire Serial Interface Clock3
12LVCMOS-I/OSDA2-Wire Serial Interface Data3
13GNDGround1
14CML-ORx3pReceiver Non-Inverted Data Output3
15CML-ORx3nReceiver Inverted Data Output3
16GNDGround1
17CML-ORx1pReceiver Non-Inverted Data Output3
18CML-ORx1nReceiver Inverted Data Output3
19GNDGround1
20GNDGround1
21CML-ORx2nReceiver Inverted Data Output3
22CML-ORx2pReceiver Non-Inverted Data Output3
23GNDGround1
24CML-ORx4nReceiver Inverted Data Output3
25CML-ORx4pReceiver Non-Inverted Data Output3
26GNDGround1
27LVTTL-OModPrsLModule Present3
28LVTTL-OIntLInterrupt3
29VccTx+3.3V Power Supply Transmitter2
30Vcc1+3.3V Power Supply2
31LVTTL-ILPModeLow Power Mode3
32GNDGround1
33CML-ITx3pTransmitter Non-Inverted Data Input3
34CML-ITx3nTransmitter Inverted Data Input3
35GNDGround1
36CML-ITx1pTransmitter Non-Inverted Data Input3
37CML-ITx1nTransmitter Inverted Data Input3
38GNDGround1

ESD

This transceiver is specified as an ESD threshold of 1kV for the high-speed data pins and 2kV for all other electrical input pins, tested per MIL-STD-883, Method 3015.4 / JESD22-A114-A (Human Body Model). However, normal ESD precautions are still required during the handling of this module. This transceiver is shipped in ESD-protective packaging. It should be removed from the packaging and handled only in an ESD-protected environment.

Laser Safety

This is a Class 1 Laser Product according to IEC 60825-1:2007. This product complies with 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No. 50, dated (June 24, 2007).
