Campus Network Architecture
Full downloadable spec sheet: QSFP-100G-LR4-S

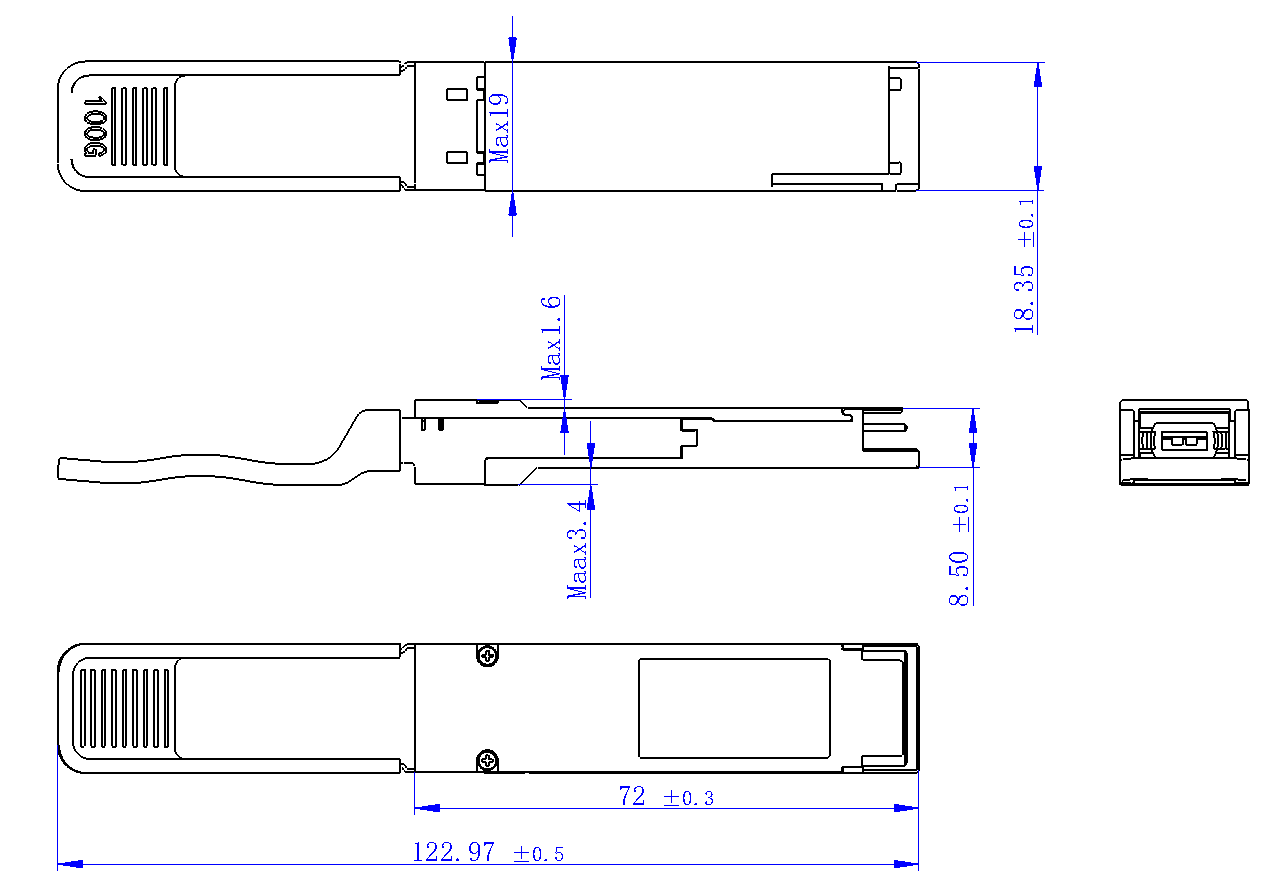

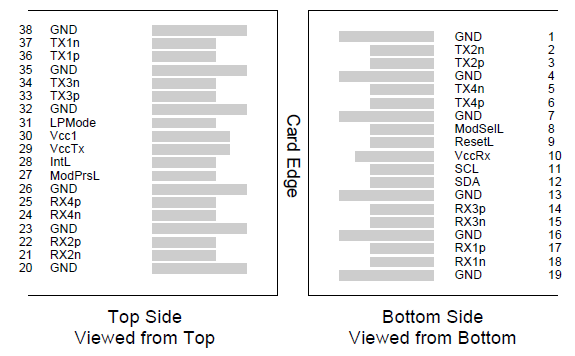

FluxLight's QSFP-100G-LR4-S is a Cisco® compatible 100GBase QSFP28 Optical Transceiver and is factory preprogrammed with all the necessary configuration data for seamless network integration. Our transceivers perform identically to Cisco® original transceivers and are 100% compatible with other OEM and third party transceivers. The QSFP-100G-LR4-S Cisco 100G transceiver is 100% MSA (Multi-Source Agreement) compliant. All FluxLight's transceivers are tested for 100% functionality and guaranteed compatible for outstanding network performance.
FluxLight offers all brands and form factors of Optical Transceivers for all your networking needs. Now you have a reliable, compatible and affordable means to expand your network while maintaining its integrity.
Many current campus designs utilized 1GbE (1Gbps Ethernet) downlinks off the Access switches. This links typically connect to Wireless Access Points (APs), workstations, storage devices and the like. These links may be copper, 10/100/1000Base-T, or fiber. Depending on the distance required between the Access switch and whatever is being connected, these fiber links may be Single Mode (SMF) or Multimode (MMF). The links between the Access and Backbone switches are typically 10GbE and the interlinks between Backbone switches, 40G or 100G. The Access-Backbone links are usually 100% fiber and generally single mode.
Cisco has a number of switch series designed for campus applications. They offer what they refer to as “baseline” switches which tend to be lower priced but with reduced feature sets. They also offer two “full-featured” switch alternatives. The Catalyst 9000 series is Cisco’s most full featured product line but is the most expensive and taking advantage of all those features requires an end-to-end all Cisco network. In this example the middle choice, a switch line with most of the important features required on most campuses (1/10/40G Ethernet services, advanced security, MPLS, integrated analytics, advanced wireless AP management) is selected. The specific access and backbone switches selected are described below.
To create access switch two models from the Catalyst 3850 platform are selected, the WS-C3850-12S and the WS-3850-24XU. These two switches can be “stacked” using Cisco’s proprietary stacking cable technology. Both these switches are available dual redundant power supplies. To add the 10GbE uplinks mentioned in the Architecture section above, “Network Modules” must be used. These modules plug into the rear of the two switches. In this design the C3850-NM-8-10G network module is used.
The WS-C3850-12S includes 12 SFP slots. These slots may be equipped with a wide range of optical transceivers, including: 100Mbps GLC-GE-100FX, 1GbE GLC-SX-SMD GLC-LH-SMD GLC-EX-SMD and copper 10/100/1000Mbps GLC-TE.
This switch includes 24 Universal Power over Ethernet (UPOE) ports. 60 watts per port of power allows this switch to support a wide variety of endpoints with uninterrupted power without the need to have a power outlet at every subtending device location.
Catalyst 6807-XL Modular Switches will be used as the backbone in this example. This modular switch chassis itself can deliver up to 11.4 terabits per second (Tbps) of total system bandwidth, with up to 440 Gbps per slot. However, the current generation of available line cards support a maximum of 160 Gbps per slot. The switch is designed for high-availability with redundant supervisor engines and N+1 power supply redundancy as well as redundant fans.
The variety of core modules that must be equipped in the chassis including, Supervisory Engines, Power Supplies and Fans, will not be described in detail here. The 10GbE interface module selected is the C6800-16P10G-XL. This is a 16-port 10-Gigabit Ethernet Fiber module, each port of which may be equipped with a full range of SFP+ modules. In this example we will be equipping 10GBASE-LR SFP+ optical transceivers, specifically the SFP-10G-LR.
Being a campus network, the links between Access and Backbone switches are invariably single mode fiber as the distances are simply too great to consider multimode, especially at rates of 10Gbps. Therefore, the optical transceiver selected in this example is a 10GBASE-LR type capable of 10Gbps transmission over distances up to 10km (6.2 miles) of standard single mode fiber. The specific FluxLight part number is SFP-10G-LR.
In some campus environments, such as one including remote (e.g. cross town) branches, an access switch may be located in excess of 10km of the backbone switches. In such cases, FluxLight’s SFP-10G-ER may be used as it supports 10Gbps connectivity over single mode fiber links up to 40km (almost 25 miles).
In this idealized campus network, putting it all together is fairly straightforward. Of course, in real life, there are many considerations and trade-offs. Starting with the backbone switches, the two (or more Catalyst 6807-XL switches should be placed in separate locations, preferably in separate buildings for survivability reasons. Into each 6807-XL as sufficient number of C6800-16P10G-XL 16 port 10GbE modules are installed. Into each of the SFP+ slots a FluxLight SFP-10G-LR SFP+ optical transceiver is inserted. As mentioned above, if there are any link to Access switches long than approximately 10 kilometers, FluxLight’s SFP-10G-ER may be used.
At selected locations around the campus the WS-C3850 switches are installed. In our description an 8-port 10GbE module is installed in the WS-C3850 stack. If more capacity is required, it is possible to arrange for additional network modules (2-port, 4-port or 8-port 10GbE) modules to be installed. If less capacity is required, a single 2-port or 4-port module could be used. If two backbone Catalyst 6807-XL switches are used, for high network availability half of the 10GbE connections from each Access WS-C3850 switch should home to one 6807-XL and half to the other. These two groups of 10GbE links should be physically routed in disparate paths to avoid unfortunate events like a digging accident from interrupting both groups of links. Using this approach will allow almost all single faults to do no more than reduce (by a maximum of 50%) the Access-Backbone capacity and not cause a complete outage at any site.
To complete the connectivity picture, a number of 40G or 100G links are implemented between the Catalyst 6807-XL switches. The backbone switches are not co-located, single-mode 40G or 100G transceivers are used, for example, the QSFP-40G-LR4 and QSFP-100G-LR4, respectively. The connections should connect each of these switches to all other backbone switches. This method completes the high-availability mesh architecture.
|ADVA 1061800720-01||Finisar FTLC1151RDPL|
|Arista QSFP-100G-LR4||Fortinet FG-TRAN-QSFP28-LR4|
|Avaya/Nortel AA1405001-E6||HP JL275A|
|Brocade-Foundry 100G-QSFP28-LR4-10KM||Juniper JNP-QSFP-100G-LR4|
|Chelsio SM100G-LR||Juniper QFX-QSFP-100G-LR4|
|Ciena 160-9401-900||Juniper SRX-QSFP-100G-LR4|
|Ciena XCVR-Q10V31||Juniper EX-QSFP-100G-LR4|
|Cisco QSFP-100G-LR4-S||Juniper QSFP-100G-LR4|
|Dell 407-BBSL||Mellanox MMA1L10-CR|
|Extreme Networks 10403||Nokia 3HE10550AA|
|F5 Networks OPT-0039-01||Palo Alto PAN-QSFP28-100GBASE-LR4|
Since its inception in 2004, Fluxlight has continually refined its processes to assure the best possible quality for our customers. The foundational elements of these processes are Record-Keeping and Quality Assurance Testing (QAT). To maintain a robust data archive, each part is individually serialized both in its internal EEPROM memory and on its external label. All QAT results and other important information (e.g., manufacture date, compatibility programming) are associated with each Serial Number stored in our cloud-based secure database. QAT consists of visual part inspection as well as verification of all critical parameters and performance of each part. For the QSFP-100G-LR4-S optical output power and wavelength (1310nm) are verified on optical spectrum analyzers. Receiver sensitivity is verified at both minimum distance and the 10km maximum range over actual (not simulated) SMF , singlemode fiber cable. Digital Diagnostics Monitoring (DDM) parameters including: optical output power, receive optical power, internal module temperature, transmit bias current and supply voltage, are tested for compliance with specifications.In addition, the part is verified for proper operation across its full operating temperature range, 0C to 50C.
Fluxlight provides a non-transferable serviceable lifetime warranty to the purchaser of Fluxlight hardware product purchased from Fluxlight or an authorized Fluxlight reseller. Fluxlight warrants to the original end customer of its products specified below that its products are free from defects in material and workmanship affecting form, fit, and function. All such products sold will work in the application specified at the time of purchase and will meet the datasheet specifications as found on Fluxlight’s Web site or otherwise provided by Fluxlight. Any claim alleging that any product fails to conform to the foregoing may be made only by the customer who purchased such product and only while such customer owns such product and while the product remains within the serviceable lifetime period. Fluxlight, at its option, will repair, replace, or provide a credit or refund of either the original purchase price or fair market value, whichever is lower, of any product that is determined by Fluxlight to be defective. Some systems that use Fluxlight products may be allowed to operate outside of the system manufacturer’s published settings and Fluxlight does not cover failure in these circumstances. This warranty covers only defects arising under normal use and do not include malfunctions or failures resulting from misuse, abuse, neglect, alteration, problems with electrical power, usage not in accordance with product instructions, acts of nature, or improper installation or improper operation or repairs made by anyone other than Fluxlight or an Fluxlight authorized third-party service provider. Fluxlight reserves the right to substitute functionally equivalent new or serviceable used parts.
Form more information please see our warranty page.
