GLC-SX-MM Cisco Compatible (1000Base-SX) Optical Transceiver

Retail: $36.10
Was: $36.10
Price: $19.00
(You save $17.10 )
SKU:
GLC-SX-MM
Condition:
New
Availability:
In Stock
Form Factor:
SFP
Rate Category:
1000Base
Interface Type:
SX
TX Wavelength:
850nm
Reach:
500m
Cable Type:
MMF
Connector:
Dual-LC
DDM:
No
Temperature:
COM

Description

GLC-SX-MM Cisco (1000Base-SX) Optical Transceiver

 Example Application

 Platform Support

 All FluxLight 1000Base-SXs

 Full downloadable spec sheet: GLC-SX-MM

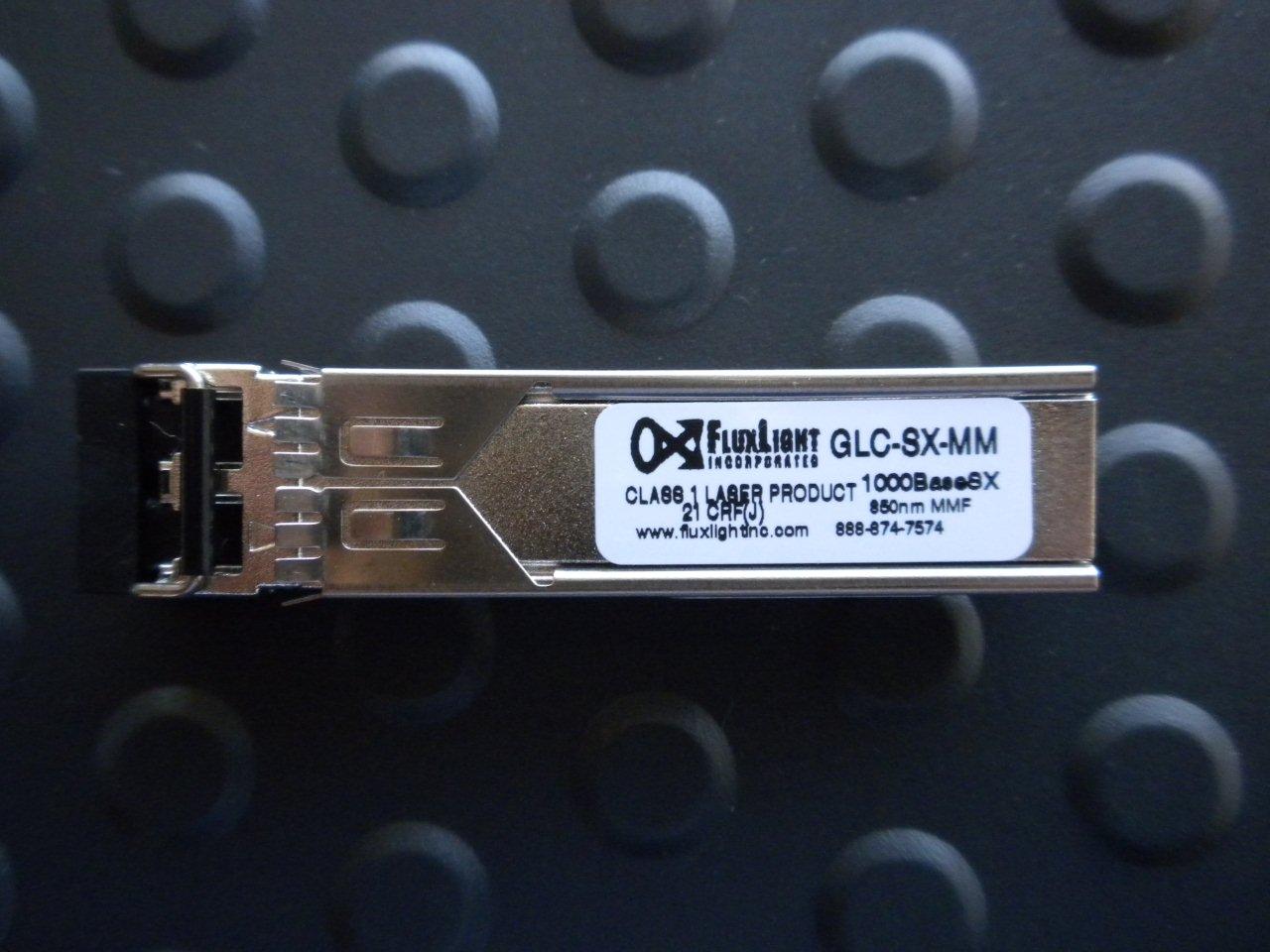

FluxLight's GLC-SX-MM is a Cisco® compatible 1000Base SFP Optical Transceiver and is factory preprogrammed with all the necessary configuration data for seamless network integration. Our transceivers perform identically to Cisco® original transceivers and are 100% compatible with other OEM and third party transceivers. The Cisco GLC-SX-MM is 100% MSA (Multi-Source Agreement) compliant. All FluxLight's transceivers are tested for 100% functionality and guaranteed compatible for outstanding network performance.

FluxLight offers all brands and form factors of Optical Transceivers for all your networking needs. Now you have a reliable, compatible and affordable means to expand your network while maintaining its integrity.




Example Application

FluxLight GLC-SX-MM Application: 1Gbps Switch Interconnect

FluxLight GLC-SX-MM Application: 1Gbps Switch Interconnect

While most new fiber interconnects have moved to 10Gbps and higher rates, good old 1Gbps connections are all that is required in many instances. In many cases, a large number of low utilization 10/100/1000 Ethernet ports can be aggregated into a few 1Gbps links using low-cost 1GbE transceivers.

This application note describes the use of 1000BASE-SX links between small edge/access switches and a larger core/spine switch.

CORE SWITCH: Cisco Nexus 9372PX

Cisco Nexus 9372PX

The Nexus® 9372PX platform is part of the latest generation of the fixed Nexus® 9000 Series Switches. Cisco uses the phrase “Application Centric Infrastructure (ACI)” to describe the technology on which this series is based. The primary elements of ACI are,

  • Automated IT workflows to shorten app deployment
  • Software Defined Networking (SDN)
  • Advanced security and analytics
  • Seamless application migration across multiple locations

The Cisco Nexus 9372PX Switch is a 1RU switch that supports 1.44 Tbps of bandwidth and over 1.15 mpps (million packets per second). The switch includes 48 SFP+ slots which may be equipped with either SFP or SFP+ modules so both 1G and 10G speeds are possible on a per port basis. Six fixed QSFP+ uplink slots are included in the N9372PX.

The N9272PX may be equipped with a wide range of optical transceiver interface types across the many rates mentioned above. The tables below include the compatible transceiver types for the two categories of ports in the switch.

Table 1 SFP Optical Transceivers

GLC-SX-MMGLC-SX-MMD              SFP SX, 550m/OM2, MMF, duplex LC
GLC-LH-SM, GLC-LH-SMD SFP LX, 10km, SMF, duplex LC
GLC-EX-SMD SFP EX, 40km, SMF, duplex LC
GLC-ZX-SMD SFP ZX, 70km, SMF, duplex LC
GLC-TE SFP T, 100m, CAT5e, RJ45
GLC-BX-U, GLC-BX-D SFP BX, 10km/40km/80km, SMF, simplex LC



Table 2 SFP+/SFP28 Optical Transceivers

SFP-10G-SR SFP+ SR, 300m/OM3, 400m/OM4, duplex LC
SFP-10G-LR SFP+ LR, 10km, SMF, duplex LC
SFP-10G-LRM SFP+ LRM, 220 OM1 MMF, duplex LC
SFP-10G-ER  SFP+ ER, 40km, SMF, duplex LC
SFP-10G-ZR SFP+ ZR, 80km, SMF, duplex LC
SFP-10G-T SFP+ T, 30m, CAT7, RJ45
SFP-10GBX-UD-PAIR SFP+ BX, 10km, SMF, simplex LC
SFP-10GBX-U-40,

SFP-10GBX-D-40

SFP+ BX, 40km, SMF, simplex LC



Table 3 QSFP+ 40G Optical Transceivers

QSFP-40G-SR4 QSFP+ 40G SR4, 100m, OM3 MMF, MPO connector
QSFP-40G-CSR4 QSFP+ 40G CSR4, 300m OM3 MMF, MPO connector
WSP-Q40GLR4L QSFP+ 40G LR4L, 2Km SMF, duplex LC
QSFP-40G-ER4 QSFP+ 40G ER4, 40Km SMF, duplex LC
QSFP-40G-SR-BD         QSFP+ 40G Bidirectional MMF, 100m OM3, duplex LC
QSFP-40G-LR4 QSFP+ 40G LR4, 10km SMF, duplex LC



ACCESS SWITCH:  Cisco Catalyst 9200

Cisco Catalyst 9200

Cisco’s Catalyst 9200 series is available in both fixed and modular configurations. The SKUs of the eight fixed models start with C9200L- and the four modular uplink models with C9200-. All models include either 24 or 48 RJ45 10/100/1000 copper downlink ports. If the SKU has a “P” after the 24 or 48 port number, the ports support Power Over Ethernet (POE). All eight fixed models offer 4 pluggable optical uplinks, either SFP or SFP+. If the final letter in the SKU is a “G” it means the switch has 1Gbps uplinks and if it ends in “X” it means 10Gpbs. In this example the C9200L-24G is selected as we only require 1GbE uplinks. The table below lists compatible transceivers that may be used with this switch.

Table 4 SFP Optical Transceivers

GLC-SX-MMGLC-SX-MMD SFP SX, 550m/OM2, MMF, duplex LC
GLC-LH-SM, GLC-LH-SMD SFP LX, 10km, SMF, duplex LC
GLC-EX-SMD SFP EX, 40km, SMF, duplex LC
GLC-ZX-SMD SFP ZX, 70km, SMF, duplex LC
GLC-TE SFP T, 100m, CAT5e, RJ45
GLC-BX-U, GLC-BX-D SFP BX, 10km/40km/80km, SMF, simplex LC



1000BASE-SX OPTICAL TRANSCEIVERS: FluxLight GLC-SX-MM

FluxLight GLC-SX-MM

FluxLight’s GLC-SX-MM (click link for datasheet) is a Cisco® compatible 1000Base-SX SFP+ Optical Transceiver and is factory pre-programmed with all the necessary configuration data for fully compatible operation with all Cisco equipment offering SFP slots. The FluxLight GLC-SX-MM includes a dual-LC connector and supports the follow link lengths over compatible multimode fiber jumpers,

  • FDDI-grade, 160 MHz*Km, 62.5 micron: 220m
  • OM1, 200 MHz*Km, 62.4 micron: 275M
  • OM2, 500 MHz*Km, 50 micron: 550m
  • OM3, 2000 MHz*Km, 50 micron: 1000m

FluxLight’s device performs identically to Cisco® original transceivers, are 100% compatible and support full hot swappable operation. The GLC-SX-MM is 100% MSA (Multi-Source Agreement) compliant, see: SFP MSA,

OM1 MULTIMODE FIBER JUMPER CABLE: FluxLight PN: FL-LCLC-DXMM-2M

 FL-LCLC-DXMM-2M

To connect the GLC-SX-MM modules in the Cisco Nexus 9372PX to the same type of modules equipped in the C9200 switches, a duplex multimode fiber jumper with dual-LC connectors at each end is used.  The one shown here is an OM1 fiber type that will support link up to 220 meters. If longer reaches are required, FluxLight has OM3 versions, see: FluxLight OM3 LC-LC jumpers.

Putting it all together

To create a robust network, each C9200 access switch is dual-homed to two Nexus 9372PX switches. Two FluxLight GLC-SX-MM modules are equipped in the C9200 switches as shown in the diagram below. Since there are three C9200 switches in the example, a total of three GLC-SX-MM modules must be equipped in each of the N9372 switches.FluxLight GLC-SX-MM Application: 1Gbps Switch Interconnect

Cisco switches were used to demonstrate the application. FluxLight carries 1000BASE-SX modules compatible with a wide range of OEM switches. Some popular models are listed below.

Table 1 SFP Optical Transceivers for Popular Switch OEMs

EX-SFP-1GE-SX Juniper
J4858C HPE
MA-SFP-1GB-SX Meraki
10051 Extreme Networks




 Platform Support



7600 Series Router Firewalls
Cisco 800BB Cisco ASAHIGH
Aggregation Services Routers Cisco FPRHIGH
Cisco ASR1000 Cisco FPRMID
Cisco ASR900 Cisco FPRUHI
Cisco ASR9000 Integrated Services Routers
Cisco ASR901 Cisco IE1000
Cisco ASR903 Cisco IE2000
Cisco ASR920 Cisco IE3000
ASA Content Security Cisco IE4000
Cisco ASAMID Integrated Services Routers
Blade Switches Cisco 3800
OS Cisco ISR2900
Carrier Routing System Cisco ISR3900
CRS Cisco ISR4000
Catalyst Switches ME Ethernet Switches
Cisco CE500 Cisco C4KTOR
Cisco CE520 Cisco C6500
Cisco C2350 Cisco ME3400
Cisco C2360 Cisco ME3600X
Cisco C2900 Cisco ME3750
Cisco C2940 Cisco ME3800X
Cisco C2950 Mobile Wireless Routers
Cisco C2960 Cisco RANTRAN
Cisco C2960C Network Convergence System
Cisco C2960CX Cisco IE5000
Cisco C2960L Cisco NCS4200
Cisco C2960P Cisco NCS5000
Cisco C2960S Cisco NCS540
Cisco C2960X Cisco NCS5500
Cisco C2960XR Cisco NCS6000
Cisco C2970 Nexus
Cisco C2975 Cisco N2000
Cisco C3560 Cisco N3000
Cisco C3560C Cisco N3500
Cisco C3560CX Cisco N4000
Cisco C3560X Cisco N5000
Cisco C3650 Cisco N6000
Cisco C3750 Cisco N7000
Cisco C3750X Cisco N9200
Cisco C3850 Cisco N9300
Cisco C4500 Cisco N9500
Cisco C4500X Routers
Cisco C4900 Cisco 7200
Cisco C4900M Cisco 7300
Cisco C6000 Cisco 7304
Cisco C6800 Cisco 7600
Cisco 9200 Cisco GSR
Cisco 9200L Cisco WANLAN
Cisco C9300 Unified Computing System
Cisco C9400 Cisco UCSB
Cisco C9500 Cisco UCSC
Cloud System Management Universal Broadband Routers
Cisco EMBUNAM Cisco UBR10K
Connected Grid Routers Cisco UBR7200
Cisco CGR2000 Wireless Controller
Cisco CGS2500 Cisco AIRCTI2
Content Services Switches Cisco AIRCTU
Cisco CSS




FluxLight's Full Line 1000Base-SX Optical Transcievers

3Com 3CSFP91 D-Link DEM-311GT Juniper RX-550M-SFP
Accedian 7SM-000 Edge-corE ET4201-SX Juniper SFP-1GE-SX
AdTran 120048E1 Edge-corE ET4202-SX Juniper SRX-SFP-1GE-SX
AdTran 1200480L1 EMC SFP-1G-SX Juniper WLC-SFP-SX
Alcatel-Lucent 1AB187280063 Enterasys I-MGBIC-GSX LG-Ericsson RDH10244/1
Alcatel-Lucent 3HE00027AA Enterasys MGBIC-LC01 LG-Ericsson SFP1G-SX
Alcatel-Lucent MiniGBIC-SX Enterasys MGBIC-MT01 Linksys LACGSX
Alcatel-Lucent SFP-GIG-SX Extreme Networks 10051 Linksys MGBSX1
Allied Telesis AT-SPSX Extreme Networks 10051H McData 100-M5-SN-I
Allnet ALL4750 F5 Networks F5-UPG-SFP-R Mellanox MC320811-SX
Anue MM850 F5 Networks OPT-0010-00 MRV SFP-GD-MX
Arista SFP-1G-SX Fiberxon FTM-8012C-SLIG Netgear AGM731F
Aruba SFP-SX Finisar FTLF8519P2BCL NetOptics SFPKT-SX
Aruba Networks J4858D Finisar FTLF-8519P2BTL N-Tron NTSFP-SX
Aruba Networks SFP-SX-AU Finisar FTRJ8519P2BNL Opnext TRF2716AALB400
Avago AFBR-5701ALZ Force10 GP-SFP2-1S Opnext TRF2716AALB465
Avago AFBR-5701APZ Force10 GP-SFP2-MTRJ-1S Opnext TRF281xAyLz
Avago AFBR-5701LZ Fortinet FG-TRAN-SX Palo Alto Networks PAN-SFP-SX
Avago AFBR-5701PZ Gigamon SFP-502 Qlogic SFP2-SW-04
Avago AFBR-5710 H3C SFP-GE-SX-MM850-A Rad SFP-5
Avago AFBR-5710ALZ HP 453151-B21 Raptor Networks OPT-SFP-300
Avago AFBR-5710APZ HP J4858A Redback RED-SFP-GE-SX
Avago AFBR-5710LZ HP J4858B Redback SFP-GE-SX
Avago AFBR-5710PZ HP J4858C RuggedCom SFP1122-1SX
Avaya 108873241 HP JD493A Sixnet GMFIBER-SFP-500
Avaya/Nortel AA1419013 Huawei LS-SFP-SX Sixnet GMFIBER-SFP-500K
Avaya/Nortel AA1419013-E5 Huawei SFP-1.25G-SX SMC SMC1GSFP-SX
Avaya/Nortel AA1419014-E5 Huawei SFP-GE-SX-MM850 SMC Networks SMCBGSLCX1
Brocade-Foundry E1MG-SX IBM 81Y1622 Sonicwall 01-SSC-9789
Brocade-Foundry E1MTG-SX IBM 88Y6062 Sun 370-5211
Brocade-Foundry M-SX IBM 88Y6836 Telco BTI-MGBIC-GSX
Cisco 15327-SFP-LC-SX IBM BN-CKM-S-SX Telco BTI-MGBIC-GSX-LC
Cisco 15454-SFP-LC-SX IMC Networks 808-38211 TRENDnet TEG-MGBSX
Cisco GLC-SX-MM Intel TXN31111 Voltaire OPT-90005
Cisco GLC-SX-MM-RGD Juniper CTP-SFP-1GE-SX Voltaire SFP-GE-SX-DLC
Cisco ONS-SC-GE-SX Juniper EX-SFP-1GE-SX Zhone SFP-GE-SX-850
Dell 790-10070 Juniper JX-SFP-1GE-SX Zhone SFP-GE-SX-850-DLC
Dell X3369 Juniper NS-SYS-GBIC-MSX ZTE SFP-GE-M500
Delta LCP-1250A4FDR Juniper QFX-SFP-1GE-SX
