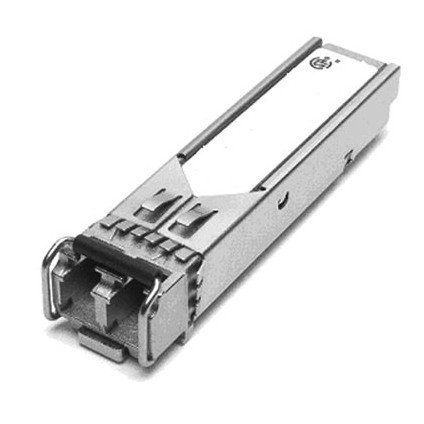

Juniper EX-SFP-10GE-SR Compatible 10GBase-SR SFP+ 850nm 300m DOM Duplex LC MMF Optical Transceiver Module

Juniper Compatible

MSRP: $47.70
Was: $37.48
Now: $14.99
(You save $32.71 )
SKU:
EX-SFP-10GE-SR-FL
Condition:
New
Availability:
In Stock
Weight:
0.10 LBS
Form Factor:
SFP+
Rate Category:
10GBase
Interface Type:
SR
TX Wavelength:
850nm
Reach:
300m
Cable Type:
MMF
Connector:
Dual-LC
DDM:
Yes
Temperature:
COM
TAA:
No
Adding to cart… The item has been added

EX-SFP-10GE-SR-FL Juniper (10GBase-SR) Optical Transceiver

Example Application

Platform Support

All FluxLight 10GBase-SRs

Data Sheet: HTML PDF

FluxLight's EX-SFP-10GE-SR-FL is a Juniper® compatible 10GBase SFP+ Optical Transceiver and is factory pre-programmed with all the necessary configuration data for seamless network integration. Our transceivers perform identically to original Juniper® SFP+ transceivers and are 100% compatible with other OEM and third party transceivers. The Juniper EX-SFP-10GE-SR-FL is 100% MSA (Multi-Source Agreement) compliant. All FluxLight's transceivers are tested for 100% functionality and guaranteed compatible for outstanding network performance.

FluxLight offers all brands and form factors of Optical Transceivers for all your networking needs. Now you have a reliable, compatible and affordable Juniper SFP+ transceiver to expand your network while maintaining its integrity.


 Example Application for FluxLight's Juniper EX-SFP-10GE-SR-FL

FluxLight Juniper compatible EX-SFP-10GE-SR-FL Optical Transceiver Application

Juniper EX 4650 IBM E980



This application note presents a high-performance, high-availability implementation of Top Of Rack (TOR) switch interconnect with multiple subtending compute servers. The switch used in this example is the EX4600 model from Juniper Networks. The servers are IBM’s&nbspPower System E980 model. The connectivity between these devices will be accomplished using point to point 10Gbps Ethernet over OM3 multimode duplex fibers. Additional items required are FluxLight 10GBASE-SR optical transceivers and 10Gbps Network Interface Card (NIC), also referred to as a Host Bus Adaptor (HBA). The sections below describe each of these components in a more detail.

TOR Leaf Switch: Juniper Networks EX4600

Juniper’s EX4600 Ethernet Switch (shown below) is positioned as an enterprise campus distribution switching point and as a low-density data center leaf (aka, Top of Rack or TOR) switch. The EX4600 is a 1RU (1.72” height) chassis and has a total switching capacity of 1.44 Terabits/second (Tbps). The basic system includes 24 SFP+ 10GbE slots (can also run at 1GbE). Two expansions slots may be equipped with either 8-port SFP+ 10GbE modules or 4-port QSFP+ 40Gbps modules. The QSFP+ ports may be configured as 4x10GbE interfaces which are derived by means of a breakout cable.

The EX4600 implements Juniper Networks’ proprietary “Virtual Chassis” technology. This allows up to 10 interconnected EX4600 switches (and select other EX-family switches) to operate as a single logical switch managed via a single IP address. Juniper touts “tremendous configuration flexibility for 10GbE server connectivity by only requiring redundant links between Virtual Chassis groups rather than each physical switch to ensure high availability.”

Rack-mounted Server: IBM Power System E980

Each IBM Power System E980 is composed of one 2RU System Control Unit (SCU) and up to four 5RU System Nodes. Therefore, a fully built out Power System E980 is 22RU or about half of the vertical space in a standard equipment rack.

The SCU (shown below), powered through redundant connections from Systems Nodes, contains redundant “Master Service Processors.” It includes an operator panel with a small LCD display and system USB port and contains what IBM refers to as the system Vital Product Data (VPD). One SCU is required for each server.


The compute power of the E980 server is contained in the 5U system nodes (shown below). While the vast majority of data center servers are based on Intel Xeon Gold or AMD EPYCprocessors, the E980 is based on IBMs proprietary&nbspPOWER9 processors. Each E980 system node contains four Single-Chip Modules (SCMs). These SCMs may be selected with 8, 10, 11 or 12 POWER9 cores running up to 4 GHz each running up to 8 threads per core. Each SCM has 128GB off-chip eDRAM L4 cache accessed through integrated dual-memory controllers with sustained memory bandwidth of 230GBps (920 GBps per node). Additionally, up to 410GBps of peak bandwidth is supported between the L4 cache and the 32 DIMM slots supporting up to 16TB of DD4 memory. Each system node contains eight Gen4 x16 low-profile PCIe slots. Therefore, a four-node server offers a total of 32 PCIe expansion slots.


Quad-SFP+ Port 10G NIC: IBM  EN16 Host Bus Adaptor

The EN16 adaptor includes four 10Gbps small form-factor pluggable (SFP+) transceiver ports. All four ports support 10Gbps Ethernet Network Interface Controller (NIC) functionality including: IEEE 802.3ae, 802.1p for VLAN priority tagging setup, 802.1Q VLAN tagging, 802.3x flow control, 802.3ad load-balancing and failover and IEEE 802.3ad for link aggregation. Also included is jumbo frame support up to 9.6KB, TCP, UDP, TCP segmentation offload (TSO) for IPv4 and IPv6 and TCP segmentation or large send offload.


10GBASE-SR Optical Transceivers: FluxLight EX-SFP-10GE-SR-FL and FluxLight 46C3447


FluxLight’s EX-SFP-10GE-SR-FL is a Juniper Networks® compatible 10GBase SFP+ Optical Transceiver and is factory pre-programmed with all the necessary configuration data for seamless network integration. These transceivers perform identically to Juniper® original transceivers, are 100% compatible and support full hot swapping operation. The EX-SFP-10GE-SR-FL is 100% MSA (Multi-Source Agreement) compliant.

FluxLight IBM 46C3447 Compatible SFP+ 10GbE Optical Transceiver

The 46C3447 SFP+ optical transceiver from FluxLight is 100% equivalent to the IBM transceiver of the same part number. It is fully compatible with the IBM EN16 HBA described in this note. Like all FluxLight optical transceivers, both the 46C3447 and the EX-SFP-10GE-SR-FL are backed by FluxLight’s limited lifetime warranty.

Fiber Jumper Cables: FluxLight FL-LCLC-OM3-2M

LC-LC Duplex OM3 2M Fiber Jumper Cable

FluxLight carries a wide range of fiber jumper cables, with various terminations, types of fiber and lengths. Particularly well suited to the short range 10Gbps Ethernet links used in this the example is FluxLight part number: FL-LCLC-OM3-2M. This is a duplex (2-fiber) cable with dual LC-type connectors on each end. The dual LC connector mates perfectly with the dual LC receptacles on the SFP+ optical transceivers we are using in this example. The OM3 multimode fiber has sufficient bandwidth to allow 10Gbps links up to 300 meters.



Putting it all together

In this example, for enhanced availability, the IBM Power System E680 servers will be dual-homed to the Juniper EX4600 leaf switches. The block diagram below shows two 4-node IBM Power System E680s, each node of which includes the IBM EN16 4-port HBA (NIC), dual-homing to two EX4600 TORS. That is a total of 16 10Gbps multimode fiber (MMF) links from each 4-node E680. These 16 links are split, 8 to each EX4600.

Server-to-TOR Switch Dual Homing

The individual pieces are described in this note are installed as follows. 16 FluxLight EX-SFP-10GE-SR-FL optical transceiver modules are installed in each of the Juniper EX4600 switches (total of 32 EX-SFP-10GE-SR-FL optical modules). One IBM EN16 NIC is installed in each of the 8 IBM Power E980 nodes. There are 8 nodes so 8 EN16 NICs are required. Into each EN16 NIC, four FluxLight 46C3447 IBM compatible SFP+ 10GbE Optical Transceiver, for a total of 32 46C3446 optical transceivers. Since all the 8x 10GbE fiber links groups are identical, a single connection group is shown below indicating the devices required for each group.




 Platform Support for FluxLight's Juniper EX-SFP-10GE-SR-FL

FluxLight's Juniper EX-SFP-10GE-SR-FL is supported on a wide range of Juniper equipment.

  • Juniper ACX5000
  • Juniper EX4550
  • Juniper NFX150
  • Juniper EX2300
  • Juniper EX4600
  • Juniper NFX250
  • Juniper EX2300 Multigigabit
  • Juniper EX6200
  • Juniper OCX1100
  • Juniper EX2300-C
  • Juniper EX8208
  • Juniper QFX10002
  • Juniper EX3200
  • Juniper EX8216
  • Juniper QFX3000-G
  • Juniper EX3300
  • Juniper EX9204
  • Juniper QFX3000-M
  • Juniper EX3400
  • Juniper EX9208
  • Juniper QFX3500
  • Juniper EX4200
  • Juniper EX9214
  • Juniper QFX5100
  • Juniper EX4300
  • Juniper EX9251
  • Juniper QFX5110
  • Juniper EX4300 Multigigabit
  • Juniper MX150
  • Juniper SRX1500
  • Juniper EX4500
  • Juniper MX204
  • Juniper SRX650




FluxLight's Full Line of 10GBase-SR Transceivers

Alcatel-Lucent iSFP-10G-SR-FL
Alcatel-Lucent iSFP-10G-SR-FLT
Allied Telesis AT-SP10SR-FL
Arista SFP-10G-SR-A-FL
Arista SFP-10G-SR-A-FLT
Aruba J9150D-FL
Aruba J9150E-FL
Aruba SFP-10GE-SR-FL
Avago AFBR-703SDDZ-FL
Avaya/Nortel AA1403015-E6-FL
Brocade-Foundry 10G-SFPP-SR-FL
Ciena XCVR-S00Z85-FL
Cisco SFP-10G-SR-FL
Cisco SFP-10G-SR-FLT
Cisco SFP-10G-SR-S-FL
Cisco SFP-10G-SR-S-FLT
Cisco SFP-10G-SR-X-FL
Dell 407-BBGM-FL
Dell 407-BBOJ-FL
Dell 407-BBOU-FL
Dell 407-BBPC-FL
Dell 407-BBRJ-FL
Dell 407-BBVJ-FL
Dell 407-BBZM-FL
Dell 407-BCBH-FL
Dell 407-BCBN-FL
D-Link DEM-431XT-FL
Enterasys 10GB-SR-SFPP-FL
Extreme 10301-FL
F5  F5-UPG-SFP+-R-FL
F5  OPT-0016-00-FL
Finisar FTLX1772M3BCL-FL
Finisar FTLX8574D3BCL-FL
Finisar FTLX8574D3BCV-FL
Finisar FTLX8574D3BNL-FL
Force10 GP-10GSFP-1S-FL
Fortinet FN-TRAN-SFP+SR-FL
Gigamon SFP-532-FL
H3C SFP-XG-SX-MM850-A-FL
HP J9150A-FL
HP JD092B-FL
HUAWEI 0231A0A6-FL
IBM 46C3447-FL
Intel E10GSFPSR-FL
Juniper EX-SFP-10GE-SR-FL
Juniper EX-SFP-10GE-SR-FLT
Juniper QFX-SFP-10GE-SR-FL
Juniper QFX-SFP-10GE-SR-FLT
Juniper SFPP-10GE-SR-FL
Juniper SFPP-10GE-SR-FLT
Juniper SFPP-10G-SR-C-FL
Juniper SFPP-10G-SR-C-FLT
Juniper SRX-SFP-10GE-SR-FL
Juniper SRX-SFP-10GE-SR-FLT
Juniper SRX-SFPP-10G-SR-ET-FL
Linksys LACXGSR-FL
Meraki MA-SFP-10GB-SR-FL
Meraki MA-SFP-10GB-SR-FLT
Netgear AXM761-FL
Nokia 3HE04824AA-FL
Nokia 3HE04824AA-FLT
Nokia 3HE04824AA-IND-FL
Nokia 3HE09326AA-FL
Nokia 3HE09326AA-IND-FL
Palo Alto PAN-SFP-PLUS-SR-FL
Sonicwall 01-SSC-9785-FL
ZTE SFP-10GE-M-FL
ZyXEL SFP10G-SR-FL

Product Quality

Since its inception in 2004, Fluxlight has continually refined its processes to assure the best possible quality for our customers. The foundational elements of these processes are Record-Keeping and Quality Assurance Testing (QAT). To maintain a robust data archive, each part is individually serialized both in its internal EEPROM memory and on its external label. All QAT results and other important information (e.g., manufacture date, compatibility programming) are associated with each Serial Number stored in our cloud-based secure database. QAT consists of visual part inspection as well as verification of all critical parameters and performance of each part. For the GLC-SX-MM optical output power and wavelength (850nm) are verified on optical spectrum analyzers. Receiver sensitivity is verified at both minimum distance and the 500m maximum range over actual (not simulated) MMF , multimode fiber cable. In addition, the part is verified for proper operation across its full operating temperature range, 0C to 50C.
